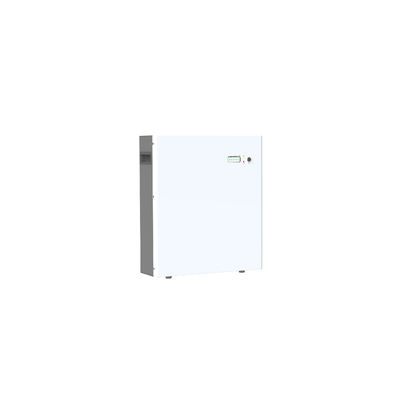

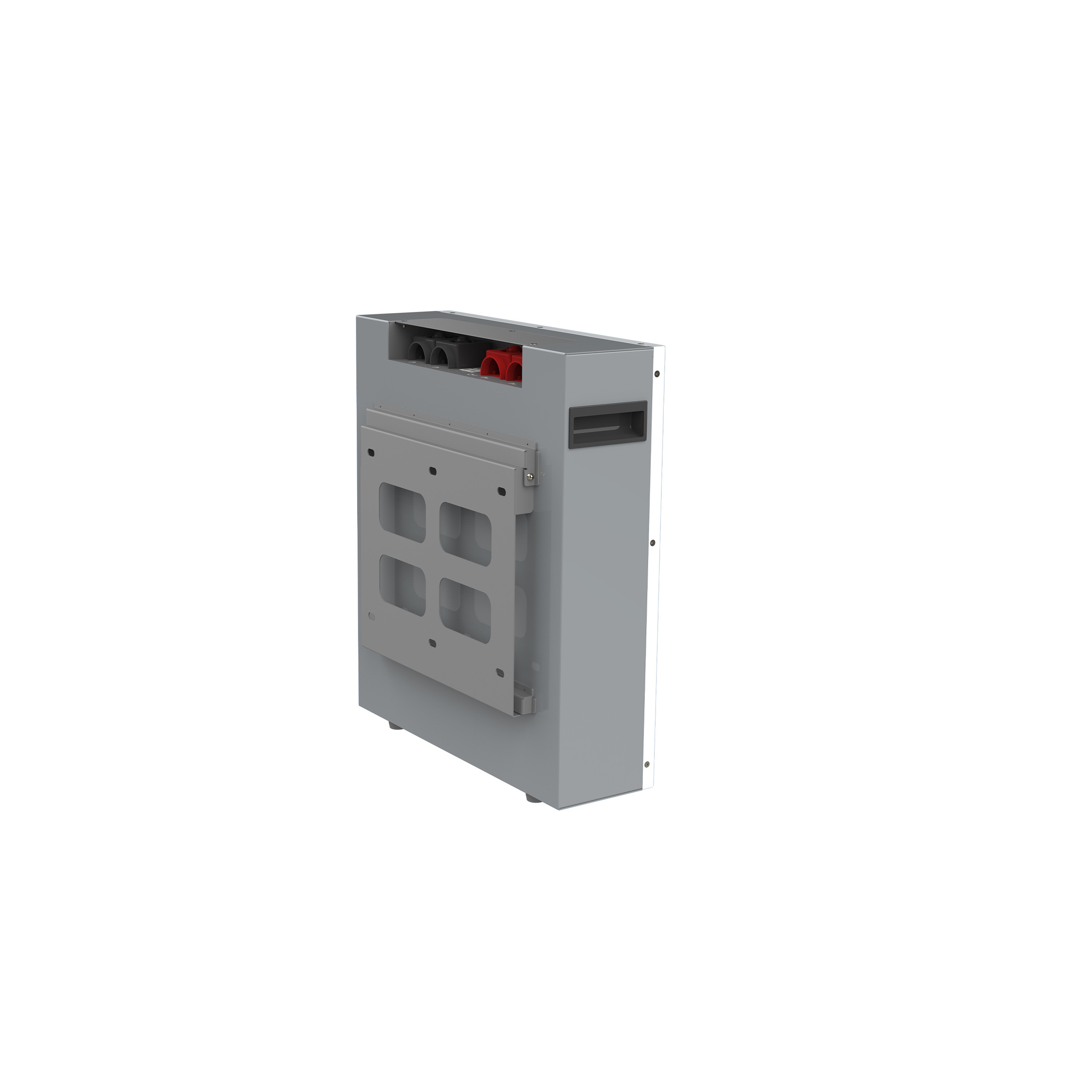

LiFePo4 het Pak van de Energieaccu met 51.2V
Model | BPL 5,1 | BPL 10,2 | BPL 15,3 |
Perormance | |||
Celtechnologie | LFP (LiFePO4) | ||
Beslag bruikbare energie | 5,12 kWu | 10,24 kWu | 15.36kWh |
Nominaal voltage | 51.2 V | ||
Werkend voltage | 42.0 - 57.6 V | ||
Nominale outputstroom | 100 A A/50 | 200 A A/100 | 300 A A/150 |
BMS-beschermingsstroom | 110 A, 1 s | 210 A, 1 s | 310 A, 1 s |
Mededeling | |||
Vertoning | Soc-statusindicator, LEIDENE indicator | ||
Mededeling | KAN/RS485/RS232 | ||
Algemene Specifcation | |||
Afmeting (W*D*H) | 450×155×520 mm | 450×155×863 mm | 720×160×906 mm |
Gewicht | 48 kg | 92 kg | 126 kg |
Installatie | Opgezette vloertribune of Muur | ||
Werkende temperatuur | -20 tot 60 °C (- 4 tot 140 °F) | ||
Milieuvochtigheid | ≤ 95%RH (Geen condensatie) | ||
Beschermingsclassificatie | IP 21 | ||
Het cyclusleven | 5000 Cycli @ 80% DOD/25℃/0.5C | ||
Scalability | Maximum 15 batterijen tegelijkertijd | ||
Toepassing | OP Net/OP Net + Steun/van Net/UPS | ||
Standaardnaleving | |||
Cerifcates | Cel: UN38.3/IEC62619/UL 1642/JET | ||
Beslagpak: UN38.3/meer beschikbare IEC62619/IEC61000/UKCA (op verzoek) |
